ENJH14系列组合型接线端子

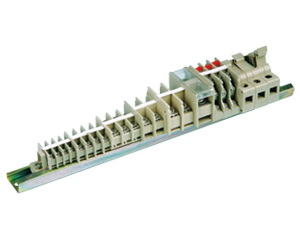

| 概述 JH(JH6)系列组合型接线端子 绝缘件采用PC 聚碳酸酯阻燃，金属件采用方框结构铜导体压接技术，不会伤损导线，额定电压交流660V、压接 0.75～35mm2 的软硬导线无需端头可以连接。G型导轨安装。 结构特征尺寸: |
|
|
|
|
|
|
| 型号 规格 |
外形尺寸mm | 连接导线 范围 mm2 |
额定 电流A |
接线 螺钉 |
配用 端头 | |||
| B |
H | 厚 | 外形图 | |||||
| JH14-1.5 | 30 | 47 | 8 | 1 | 0.75-1.5 | 17.5 | 1.5 | TU1-0.5/3, TO1-0.5/3 TU1-1/3, TO1-1/3 TU1-1.5/3, TU1-1.5/3 |
| JH14-1.5/2L | ||||||||
| JH14-1.5/3L | ||||||||
|
JH14-1.5B |
31 | 28.5 | 11 | |||||
| JH14-1.5G | 30 | 15 | ||||||
| JH14-2.5 | 35 | 41.5 | 10 | 1 | 1-2.5 | 24 | 2.5 | TU1-1/4, TO1-1/4 TU1-1.5/4, TO1-1.5/4 TU1-1.5/3, TO1-1.5/3 |
| JH14-2.5L | 2 | |||||||
| JH14-2.5/2L | ||||||||
| JH14-2.5/3L | ||||||||
| JH14-2.5S | 60 | 65.5 | 3 | |||||
| JH14-2.5S/2L | ||||||||
| JH14-2.5S/3L | ||||||||
| JH14-2.5B | 36 | 31.5 | 11 | |||||
| JH14-2.5G | 35 | 1.5 | ||||||
| JH14-2.5SG | 60 | |||||||
| JH14-2.5RD | 65 | 48 | 17.2 | 4 | 2.5-4 | 24-41 | 4-2 | |
| JH14-6 | 45 | 52 | 14 | 1 | 2.5-6 | 41 | 6 | TU1(TO1)-2.5/5, 4/5, 6/5 |
| JH14-6G | 45 | 1.5 | ||||||
| JH14-10 | 50 | 60 | 16.5 | 1 | 6-10 | 57 | 10 | TU1-6/6, TO1-6/6, 10/6 |
| JH14-10G | 50 | 1.5 | ||||||
| JH14-25 | 60 | 60 | 25 | 1 | 10-25 | 101 | 25 | TU1-10/8, 16/8, 25/8 |
| JH14-25G | 60 | 2 | ||||||
| JH14-50 | 72 | 65 | 28 | 10-50 | 150 | 60 | TU1-10/10, 16/10, 25/10 | |
| JH14-50G | 72 | 2.5 | ||||||
